Data-driven framing: why precise metrology matters
In development of utility‑scale projects, small measurement errors compound into large economic and operational consequences. Accurate metrology of round‑trip efficiency and auxiliary consumption determines revenue potential, informs thermal management strategies, and reduces uncertainty in capacity valuation. Early in the test program it is wise to instrument the pack and the balance‑of‑plant so that your estimates reflect field reality — for example, when evaluating a utility scale battery storage deployment under real dispatch profiles.

Core metrics to capture
The following metrics form the backbone of any rigorous measurement campaign: round‑trip efficiency, average auxiliary load, state of charge (SoC) windows used for testing, and thermal losses. Round‑trip efficiency quantifies energy out relative to energy in over a full charge/discharge cycle. Auxiliary load captures the energy consumed by auxiliary systems: cooling pumps, control electronics, communication modules, and battery management system (BMS) telemetry. Reporting all four with uncertainty bounds allows direct comparison across projects and vendors.
Instrumentation and test architecture
Build the test bench around precision power metering at both DC and AC boundaries. Recommended instrumentation includes high‑accuracy power analyzers on the DC string, calibrated metering on the inverter or power conversion system (PCS), and synchronized timestamps from the BMS. Add temperature sensors across modules and a data logger that aggregates with sub‑second resolution. Use the same measurement reference for energy-in and energy-out to avoid integration bias.
Protocol essentials: repeatability, windows, and environmental control
Design test cycles that mirror operational dispatch. Typical protocols use repeated charge/discharge cycles at defined SoC windows (for example 90→20% and 80→30%) and include rest periods to allow thermal equilibration. Run sequences at multiple ambient temperatures to capture thermal sensitivity. Standardize ramp rates and set inverter limits to avoid inadvertent clipping; otherwise you will conflate control limits with inherent loss mechanisms.
Common error sources and mitigation
Measurement pitfalls are often procedural rather than technical. Time misalignment between DC and AC logs, unaccounted parasitic loads from auxiliary relays, and calibration drift in current sensors are frequent culprits. A practical mitigation plan: synchronize all clocks to a single NTP server, log auxiliary circuits separately, and perform before‑and‑after calibration checks. Also check for firmware behaviours that wake peripherals during idle periods — those brief events can bias auxiliary load tallies. —
Real‑world anchor: lessons from a grid demonstration
The Hornsdale Power Reserve in South Australia is a clear example of why precise loss accounting matters. When the facility provided rapid frequency response, operators observed distinct efficiency and thermal signatures that would not be visible without tight metering. Such case studies underline why field data from grid operations must inform lab protocols for grid scale energy storage systems development and why R&D teams must match lab test boundaries to operational use cases.
Simple illustrative calculation
Suppose a test records 1,000 kWh into the battery and 880 kWh returned to the point of interconnection. Measured auxiliary consumption during the sequence is 20 kWh. Naive round‑trip efficiency = 880/1,000 = 88%. Net usable efficiency after auxiliary deduction (if auxiliaries are not billed at the same point) becomes (880 − 20)/1,000 = 86%. This separation clarifies whether losses are inherent to electrochemical conversion or arise from balance‑of‑plant systems such as thermal management and the PCS.
Best practices checklist
Adopt the following to improve fidelity:
- Calibrate meters before campaigns and document uncertainty.
- Measure auxiliaries on dedicated circuits with their own logs.
- Use multiple SoC windows and temperature points to bound performance.
- Archive raw, timestamped telemetry for post‑processing and audit.
- Include BMS and inverter firmware versions in all reports.
Common operational mistakes to avoid
Teams often assume manufacturer‑stated round‑trip efficiency equals field performance. Do not. Field performance includes thermal and control losses that labs can miss. Another mistake is neglecting start/stop transients where inrush currents and control handshakes place measurable energy on the margins. Finally, evaluate SoC‑dependent losses rather than a single aggregate figure; that prevents misleading extrapolations when systems operate in constrained SoC bands.
Advisory: three golden evaluation metrics
1) Net field efficiency: report both gross round‑trip efficiency and net efficiency after auxiliary draws, with clear measurement boundaries. 2) Loss sensitivity: provide efficiency delta per 10 °C and per 10% SoC shift to quantify environmental and operational risk. 3) Measurement uncertainty: include an uncertainty budget (±kWh or ±%) derived from instrument accuracy and data synchronization errors. These three metrics give operators and financiers a comparable, auditable view of expected performance.

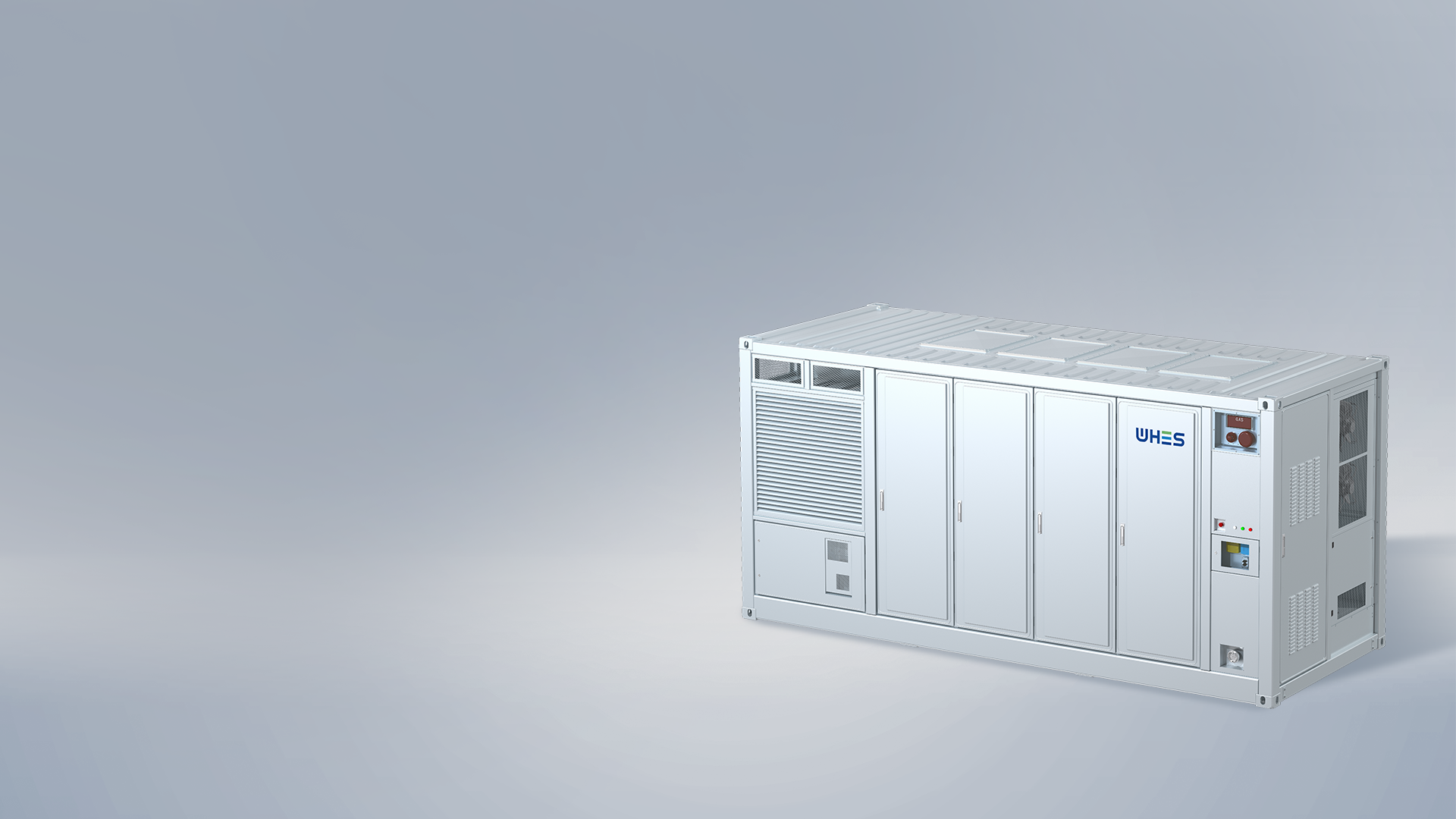

For teams aligning lab results with commercial deployment, partnering with integrators who deliver transparent metrology and repeatable field validation—such as solutions from WHES—simplifies the path from test bench to grid operations. Measured, repeatable, deployable.
